Kent Armstrong

Kent Armstrong - Slimbucker Jazz Guitar Pickup Pickguard Mount

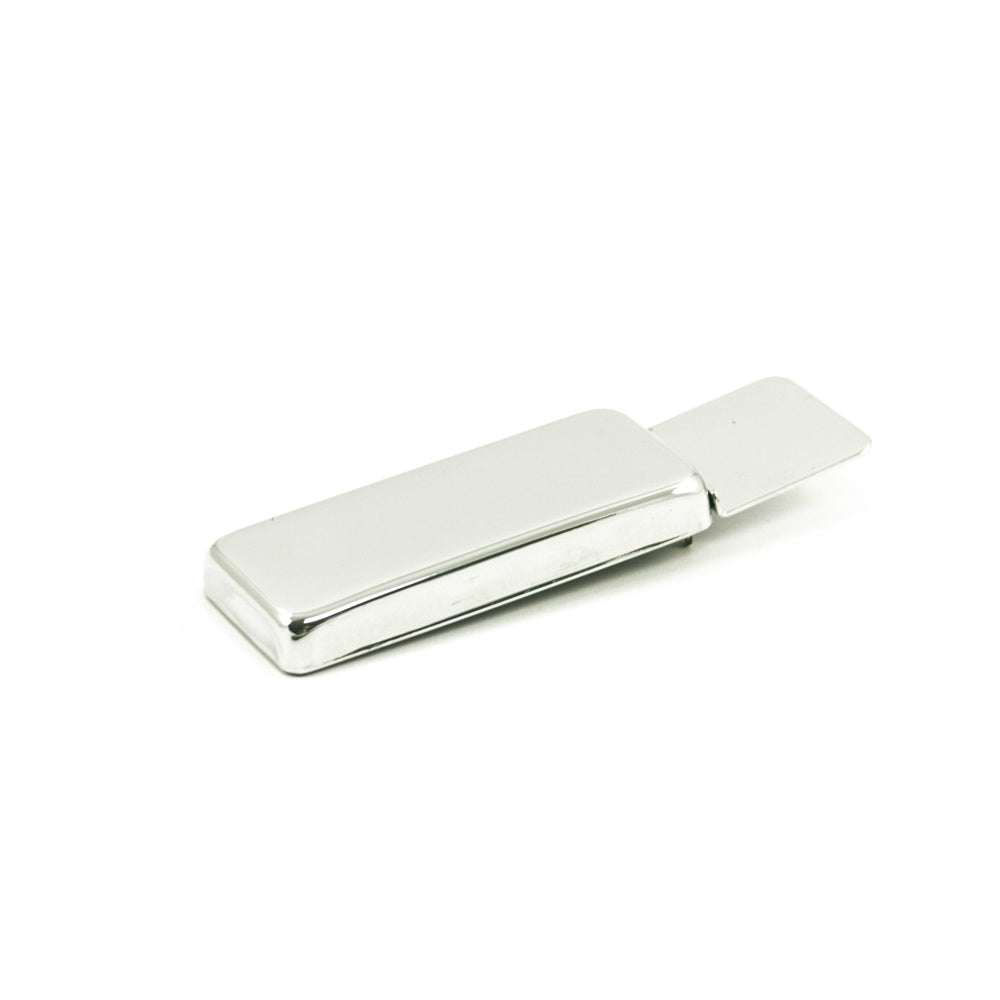

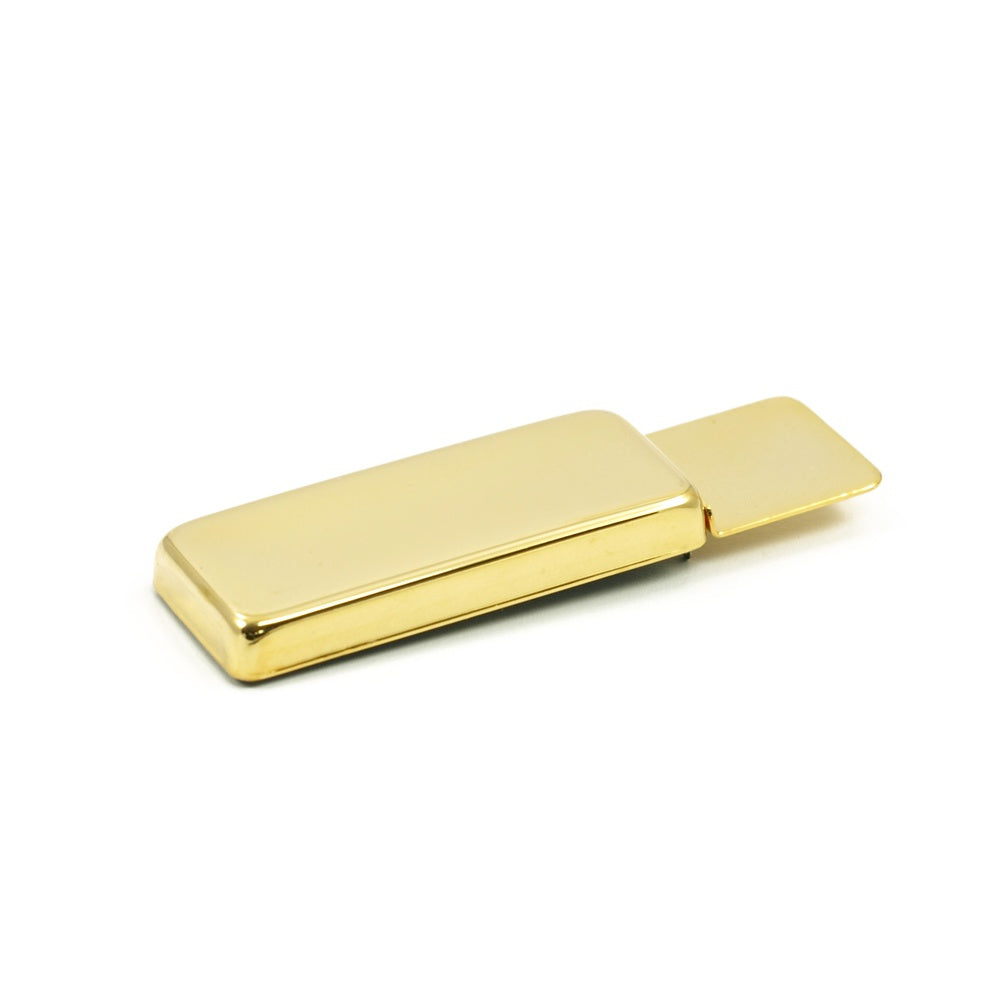

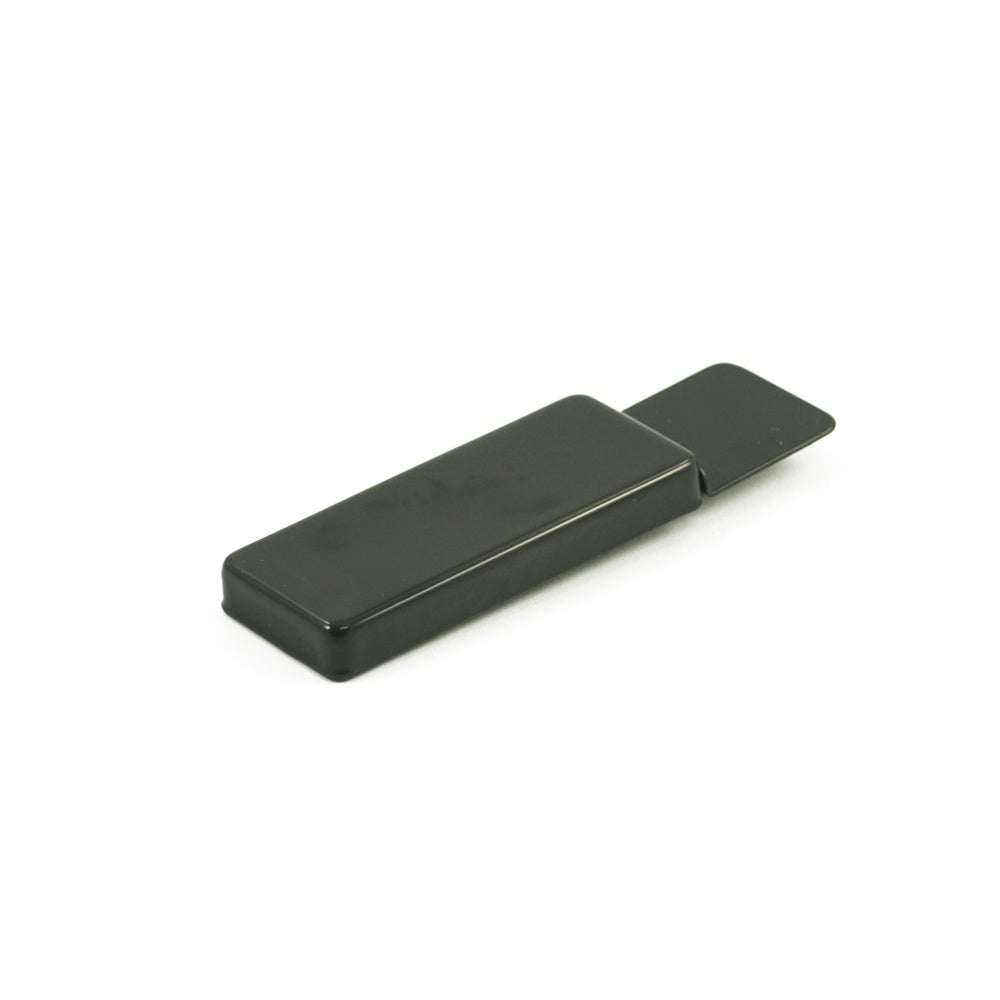

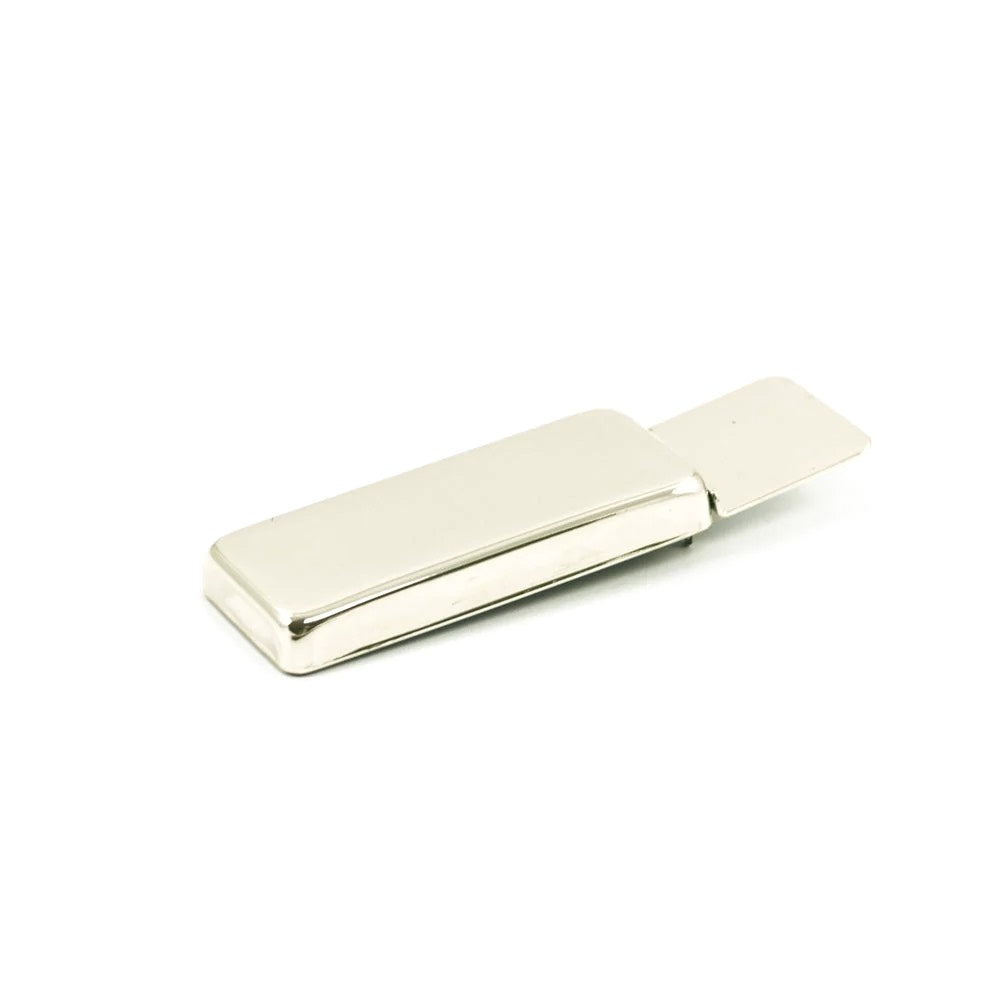

Slimbucker Jazz Guitar Pickup Pickguard Mount

SKU:Code: HJGS3CR

Regular price $100.95 USD
Regular price Sale price $100.95 USD
Sale Sold out
Shipping calculated at checkout.
1+ 10+ 30+ 50+
$100.95 $90.86 $70.67 $50.48
Title

PRODUCT DETAILS

ALNICO / D.C. =8K Kent Armstrong has long been the best Jazz pick-up designer in the industry. This time he has really outdone himself! This Humbucking pick-up is only 3/8" thick but sacrifices nothing in terms of sound quality of the full rich sound that players have come to expect of such a pick-up. Don't worry about getting a pick-up to fit under the strings again.

Tip on how to mount this Kent Armstrong Jazz Guitar pickup - there are two options for attaching this pickup to the pickguard / scratchplate:

  1. For the most inconspicuous method of mounting, rough up the top side of the metal side tab on the pickup as well as the underside of the pickguard and then use a contact adhesive such as Evo-stik.
  2. Another method is to drill two holes through both the pickguard and metal side tab on the pickup and use some small nuts and bolts to secure into position.

There are two solder lugs on the bottom of the pickup ready for your wiring. We recommend purchasing our Gibson braided wire. The lug closest to the mounting tabs is the ground or shield lug, and it should be wired to the Gibson wire's outer braid. The inner conductor of the wire will connect to the inner or hot lug. You can run the pickup straight into output endpin jack, or you may choose to use onboard volume and tone controls. These controls can be mounted to the instrument's pickguard, or into holes drilled into the face of the guitar. 500k for brighter tone, 250k for warmer tone.

Important measurements -
Overall size - 69mm x 29mm (excluding mounting bracket). Depth 9mm / 11.5mm depth including solder tags.
Bar magnet length - 58mm.
