Kent Armstrong - Smooth Sam Jazz Guitar Pickup Neck Mount

Smooth Sam Jazz Guitar Pickup Neck Mount


Regular price $100.95 USD
Regular price Sale price $100.95 USD
Sale Sold out
Shipping calculated at checkout.
1+ 10+ 30+ 50+
$100.95 $90.86 $70.67 $50.48


ALNICO V / D.C. =8K- A sweet-sounding Humbucking Jazz pick-up designed for use with traditional Arch Top guitars. This version has a suitable mounting bracket attached for neck mounting. Made in the tradition of the Johnny Smith endorsed Gibson's introduced in the early 1960's. Alnico V bar magnets.

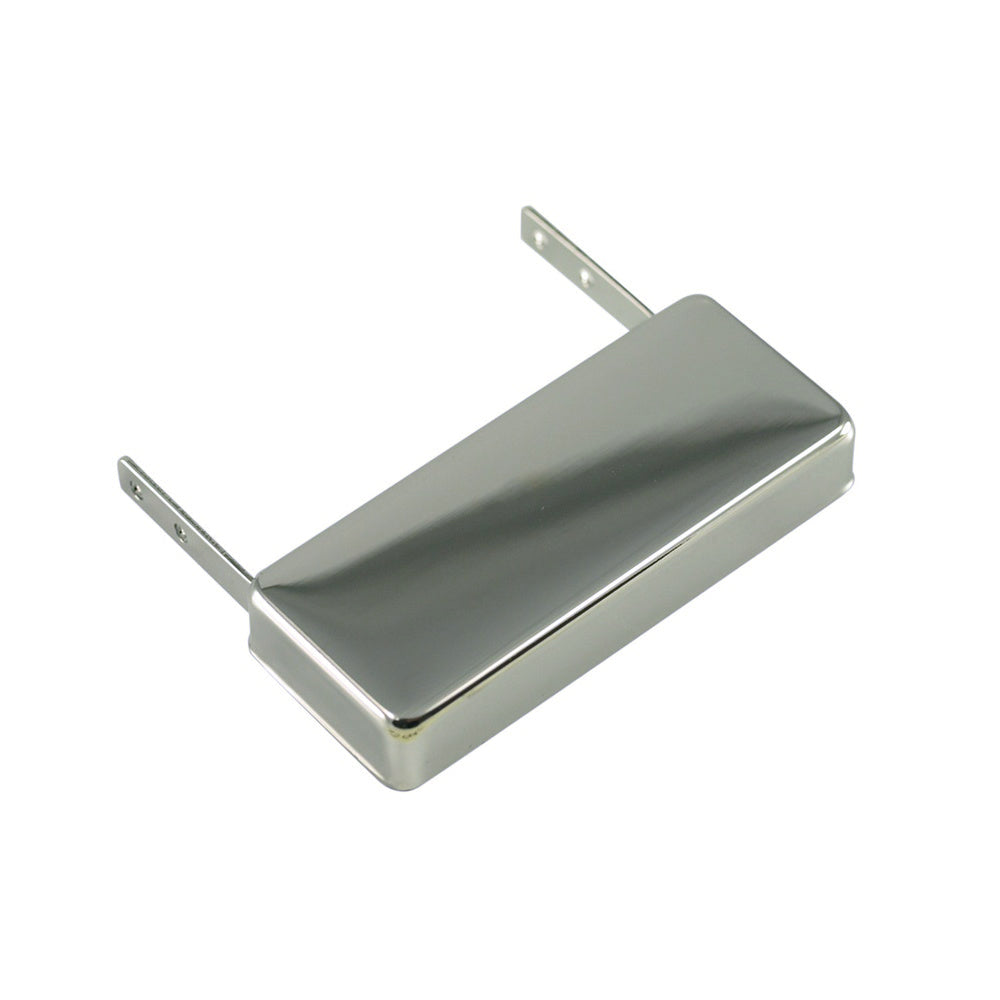

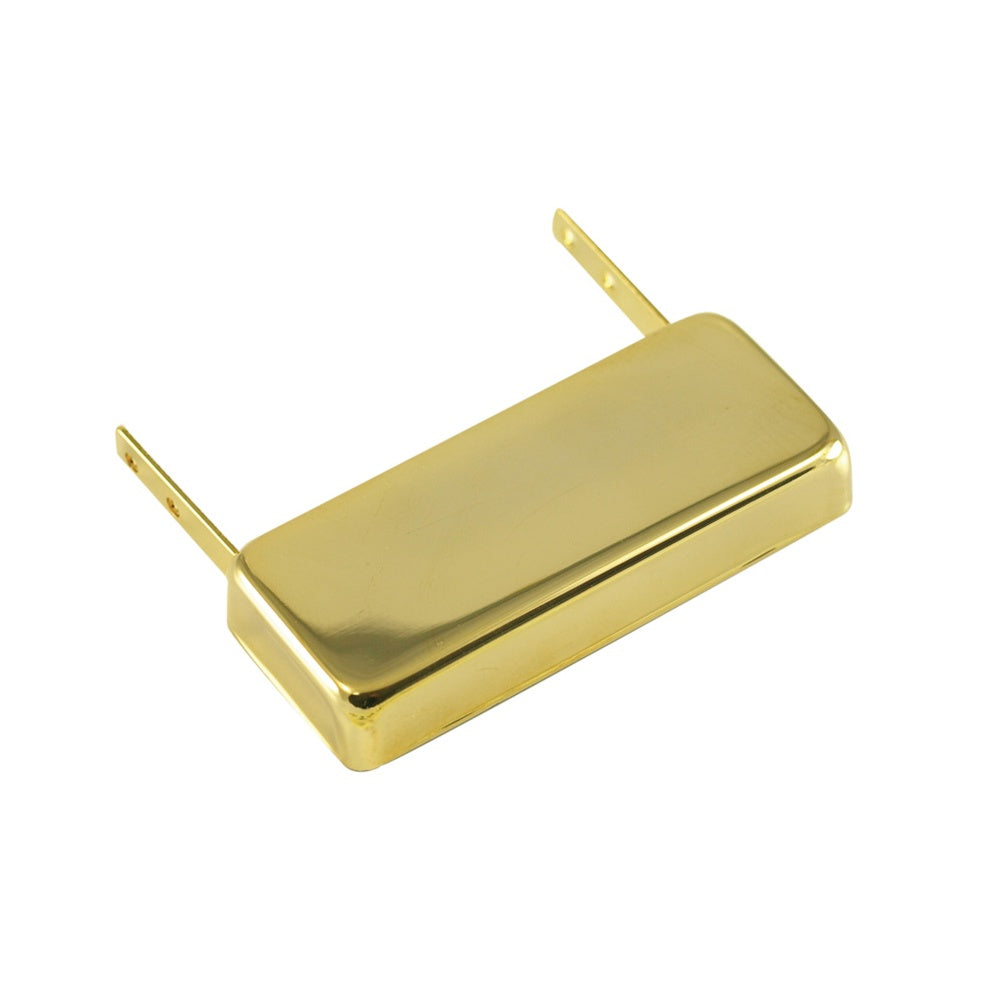

The Smooth Sam Jazz Pickup from Kent Armstrong is intended for mounting to the end of a guitar's fingerboard. The two mounting tabs wrap around the outside of the fingerboard and the pickup is attached with the four screws. Once you have the tabs properly profiled to fit the neck, mark the four mounting tab holes on the edges of the neck and drill 1/16" pilot holes for the screws. The tabs can be bent with pliers to match your fingerboard's width and profile. Wrap the jaws of the pliers with electrical tape to protect the pickup. You may also find it necessary to "tweak" the angle of the mounting tabs relative to the face of the pickup. This will insure that the pickup is parallel to the stings. When bending the tabs, grasp them near the pickup housing and gently bend them the desired amount. Try to avoid re-bending.

There are two solder lugs on the bottom of the pickup ready for your wiring. We recommend purchasing our Gibson braided wire. The lug closest to the mounting tabs is the ground or shield lug, and it should be wired to the Gibson wire's outer braid. The inner conductor of the wire will connect to the inner or hot lug. You can run the pickup straight into output endpin jack, or you may choose to use onboard volume and tone controls. These controls can be mounted to the instrument's pickguard, or into holes drilled into the face of the guitar. 500k for brighter tone, 250k for warmer tone.

Important measurements -
Overall size - 69mm x 29mm (excluding mounting bracket). Depth 12.5mm / 16mm depth including solder tags.
Bar magnet length - 58mm.
Distance between the two mounting bracket legs - 58mm

Mounting bracket length of leg - 25mm
